V-LED MID

Aldridge is driving the initiative to reduce greenhouse emissions with our range of road lighting solutions.

The V-LED MID is a High Performance, Energy Efficient, Tunnel and Underpass Lighting Luminaire.

The V-LED range delivers incredible photometric outputs that meet and exceed the most challenging of high mast schemes. The custom NEMA optics deliver consistent and uniform light levels so anyone can confidently navigate the well-lit areas with ease.

As with all Aldridge manufactured lighting, the V-LED MID is a high performance, energy efficient, cost saving street light which adopts all the criteria for smart city integration.

V-LED MID Options Include:

- Photocell: 7-pin Nema receptacle (7PN)
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL), White (WH) Grey (GR – Standard)
- CCT: 3000K, 4000K (Standard), 5000K
- Visor: Glare shield/spill light kit (GV)
- Remote Gear: (GV)
- 5° Tilt Adjustment Adapter: (5TA)

Suitable For

- Tunnels
- Underpasses
- Freeways
- Expressways
- Highways
- Motorways

Specifications

- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: Type 2 – 3 – 5 (Standard)
- LED: CREE
- Wattage: 75 – 85 – 155 – 175 – 265 Watts
- Finishing: Powder Coat (Grey Standard)
- Mounting: 9 – 15 Metres
- Fixing: Side Spigot Mount (32 – 40mm OD)
- IP rating: IP66
- IK rating: IK06
- Voltage: 220V – 240V 50/60Hz
- Power Factor: >0.9

Features

- Smart City Ready – TST compatibility Zigbee, LoRa, NBIOT
- High Performance roadway luminaire designed to meet stringent Australian/New Zealand road lighting standard, AS/NZS 60698.2.3 & AS/NZS TS 1158.6
- High Performance Optics designed to comply and meet Australian standards AS1158-1.1 Cat V
- Direct replacement of conventional V – category High Pressure Sodium and Metal Halide luminaires
- Semi-cutoff and Aero screen (std) diffuser
- Integrated thermal management
- Segregated termination chamber c/w quick access
- 20 year Design Life
- 10 year warranty

Download Catalogue

1 / 1

V-LED MKII

The V-LED MKII luminaire provides clearer illumination within the roadway infrastructure, especially important for accident black spots on major roads and highways. The V-LED MKII is designed as a direct replacement of conventional V – category High Pressure Sodium (HPS) and Metal Halide luminaires.

As with all Aldridge manufactured lighting, the V-LED MKII is a high performance, energy efficient, cost saving street light which adopts all the criteria for smart city integration.

V-LED MKII Options Include:

- Photocell: 7-pin Nema receptacle (7PN)
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL), White (WH) Grey (GR – Standard)
- CCT: 3000K, 4000K (Standard), 5000K
- Visor: Glare shield/spill light kit (GV)
- Remote Gear: (GV)
- 5° Tilt Adjustment Adapter: (5TA)

Suitable For

- Tunnels
- Underpasses
- Freeways
- Expressways
- Highways
- Motorways

Specifications

- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: Type 2 – 3 – 5 (Standard)
- LED: CREE
- Wattage: 75 – 85 – 155 – 175 – 265 Watts
- Finishing: Powder Coat (Grey Standard)
- Mounting: 9 – 15 Metres
- Fixing: Side Spigot Mount (32 – 40mm OD)
- IP rating: IP66
- IK rating: IK06
- Voltage: 220V – 240V 50/60Hz
- Power Factor: >0.9

Features

- Smart City Ready – TST compatibility Zigbee, LoRa, NBIOT
- High Performance roadway luminaire designed to meet stringent Australian/New Zealand road lighting standard, AS/NZS 60698.2.3 & AS/NZS TS 1158.6
- High Performance Optics designed to comply and meet Australian standards AS1158-1.1 Cat V
- Direct replacement of conventional V – category High Pressure Sodium and Metal Halide luminaires
- Semi-cutoff and Aero screen (std) diffuser
- Integrated thermal management
- Segregated termination chamber c/w quick access
- 20 year Design Life
- 10 year warranty

Download Catalogue

1 / 1

SEVILLE

The Seville, from the Resilience Range of lighting, is designed and manufactured specifically to withstand the harshest of environments and vandal prone locations.

With an IP65 rating, and impact rating from IK8 – IK20, Resilience luminaires are suitable for both interior and exterior installations, including anti-ligature options for secure establishments.

Aldridge Resilience LED lights come in a wide range of lumens, wattages, shapes and sizes.

The Seville features prism glass which reduces the glare without impacting on lighting efficiency. An IP65 rating protects against harsh conditions and hostile environments.

Simple profile, pleasant illumination, no glare, low energy consumption.

Infra-red sensor, (except on standard versions) with intelligent 7 steps lumen intensity control included.

Unique emergency function design, (Emergency function is only available on the emergency versions).

3000K, 5700K colour temperature available.

Suitable For

- Tunnels
- Underpasses
- Urban Lighting
- Social Housing
- Local Authority
- Secure Establishments
- Transport

Features

The Resilience Seville is available in 4 variations and 700 or 1400 lumens.

- Standard
- Sensor
- Emergency
- Emergency + Sensor

Download Catalogue

1 / 4

Flud S M & L

FLUD Series

The FLUD Series is a High Performance, Energy Efficient, Tunnel and Underpass Lighting Luminaire. Also available with RGB DMX Controller.

FLUD Options Include:

- Photocell: 7-pin Nema receptacle (7PN), D2 type cell (D2)
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL, )White (WH), Grey (GR-Standard)
- CCT: 3000K, 4000K (Standard), 5000K
- Visor: Glareshield/spill light kit (GV)
- Controller: RS485 lamp based driver suitable for tunnel lighting
- RGB: DMX Controller

FLUD S - Suitable For

- Tunnels
- Underpasses
- Freeways
- Expressways
- Highways
- Motorways

FLUD S - Specifications

- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: Asymmetric – Symmetrical Distribution
- LED #: CREE 36 – 36 – 48 – 48 (RGB)
- Wattage: 80 – 100 – 120 – 120 (RGB) Watts
- Finishing: Powder Coat (Grey Standard)
- Fixing: Trunnion Mount
- IP rating: IP66
- IK rating: IK9
- Voltage: 240V 50/60Hz
- Power Factor: >0.9

FLUD S - Features

- Designed to meet stringent Australian Standards
- Suitable for Roadway, Tunnel and Landscape Applications
- Self cleaning housing and PMMA optical diffuser
- High Performance LED & Optics to meet AS/NZ1158
- Integrated thermal management
- Segregated termination point
- Hinged ‘quick access latch’
- Complies with AS/NZ 1158.6 & AS/NZ 1158.1
- 10 year warranty

FLUD M - Suitable For

- Tunnels
- Underpasses
- Freeways
- Expressways
- Highways
- Motorways

FLUD M - Specifications

- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: Asymmetric – Symmetrical Distribution
- LED #: CREE 64 – 80 – 96 – 96 (RGB)
- Wattage: 150 – 200 – 240 – 240 (RGB) Watts
- Finishing: Powder Coat (Grey Standard)
- Fixing: Trunnion Mount
- IP rating: IP66
- IK rating: IK9
- Voltage: 240V 50/60Hz
- Power Factor: >0.9

FLUD M - Features

- Designed to meet stringent Australian Standards
- Suitable for Roadway, Tunnel and Landscape Applications
- Self cleaning housing and PMMA optical diffuser
- High Performance LED & Optics to meet AS/NZ1158
- Integrated thermal management
- Segregated termination point
- Hinged ‘quick access latch’
- Complies with AS/NZ 1158.6 & AS/NZ 1158.1
- 10 year warranty

FLUD L - Suitable For

- Tunnels
- Underpasses
- Freeways
- Expressways
- Highways
- Motorways

FLUD L - Specifications

- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: Asymmetric – Symmetrical Distribution
- LED #: CREE 120 – 140 – 140 (RGB)
- Wattage: 300 – 360 – 300 (RGB) Watts
- Finishing: Powder Coat (Grey Standard)
- Fixing: Trunnion Mount
- IP rating: IP66
- IK rating: IK9
- Voltage: 240V 50/60Hz
- Power Factor: >0.9

FLUD L - Features

- Designed to meet stringent Australian Standards
- Suitable for Roadway, Tunnel and Landscape Applications
- Self cleaning housing and PMMA optical diffuser
- High Performance LED & Optics to meet AS/NZ1158
- Integrated thermal management
- Segregated termination point
- Hinged ‘quick access latch’
- Complies with AS/NZ 1158.6 & AS/NZ 1158.1
- 10 year warranty

Download Catalogue

1 / 1

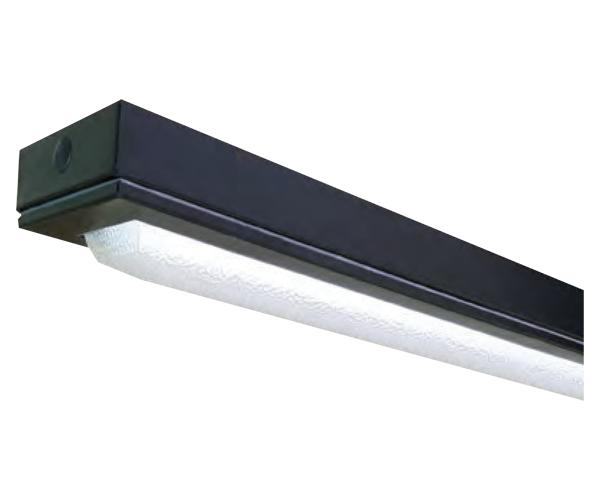

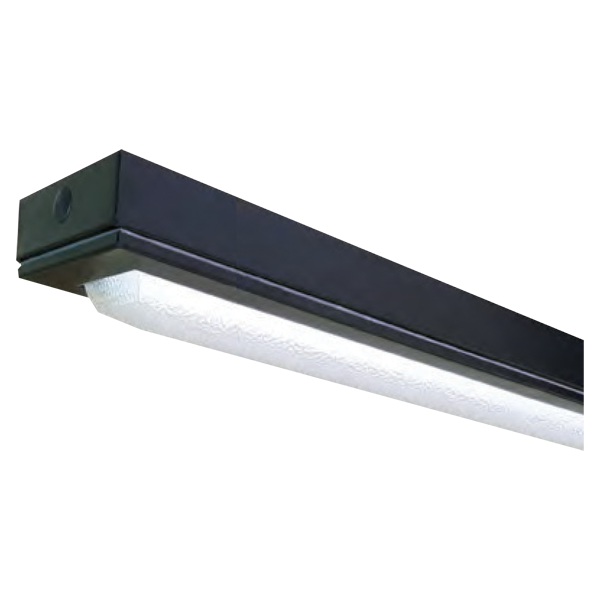

S-LED

Introducing the the S-LED and S2-LED the next generation of high level, energy efficient and resilient luminaires for public areas where hygiene and safety is a priority. The S-LED ideally suited to Pedestrian and Vehicle Underpasses, Railway Stations, Bus Shelters, Transport Hubs, Police Stations and areas of low visibility. The S-LED facilitates safe movement of vehicles, pedestrians and cyclists, allowing clear identification of objects and people, making it a suitable luminaire for areas prone to crime and vandalism.

S-LED Options Include:

- Flat diffuser IK10: (Aero)
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL), White (WH), Grey (GR – Standard)
- CCT: 3000K, 4000K (Standard), 5000k
- Controller: RS485 compatible lamp driver: (TST:LCU12R)
- TST compatible: (TST:SCU02)

Suitable For

- Tunnels
- Underpasses
- Pedestrian Underpasses
- Rail Stations
- Transport Hubs
- Police Stations
- Adverse Locations

Specifications

- Body: Formed Aluminium – Marine Grade
- Optics: Distribution to Meet Uniformity Requirements
- Wattage: 20 – 30 – 40 – 60 – 80 Watts
- Finishing: Powder Coat (Grey Standard)
- Fixing: Ceiling or Wall
- Mounting: 3 – 6 Metres
- IP rating: IP65
- IK rating: IK10
- Voltage: 230VAC 50/60Hz
- Power Factor: >0.9

Features

- Suitable for pedestrian and vehicle underpass, railway stations, transport hub, police stations and adverse locations that are subject to vandalism
- Designed to comply with stringent AS/NZ standards
- High performance LED & Optics to meet AS/NZ standards
- Integrated thermal management
- Removable driver and LED module
- End to end mounting
- Smart City compatible – TST
- 10 year warranty

Download Catalogue

1 / 5

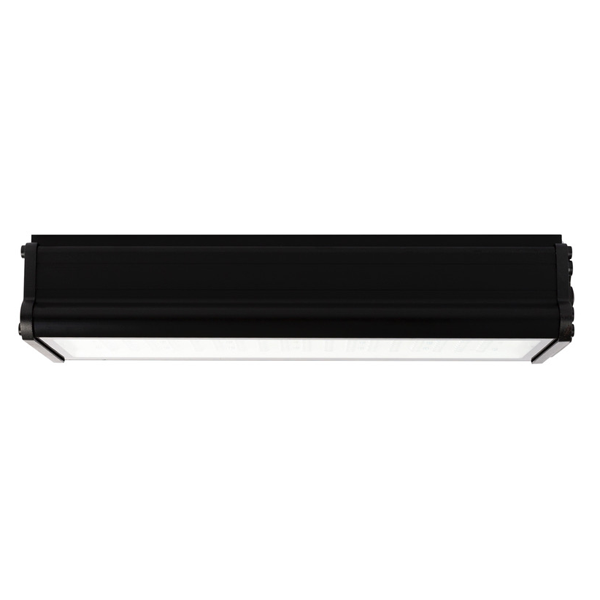

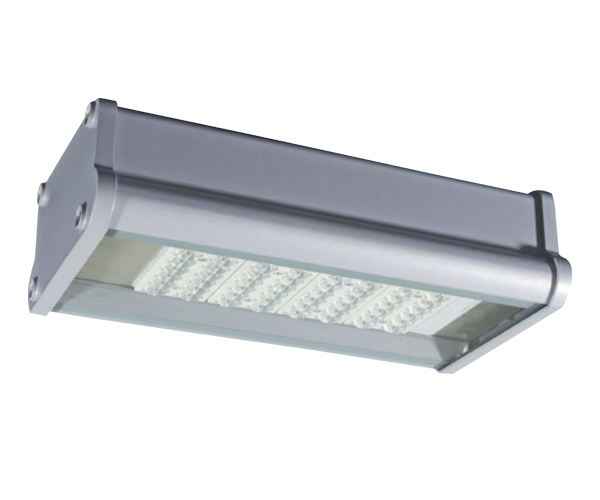

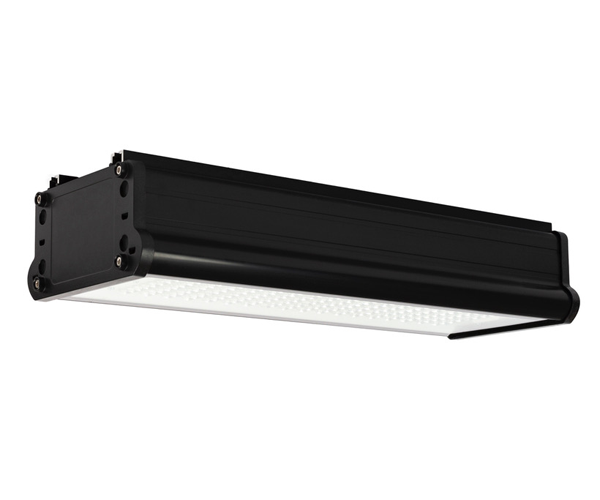

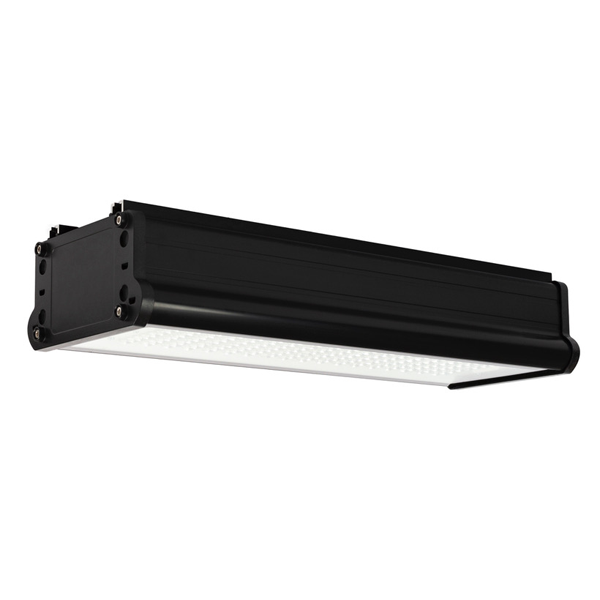

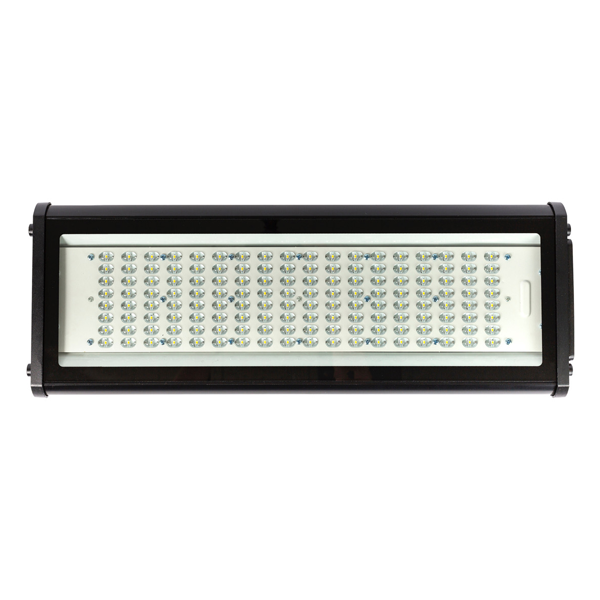

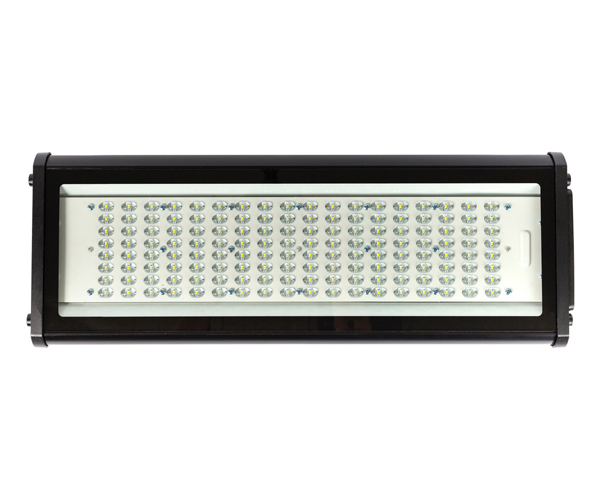

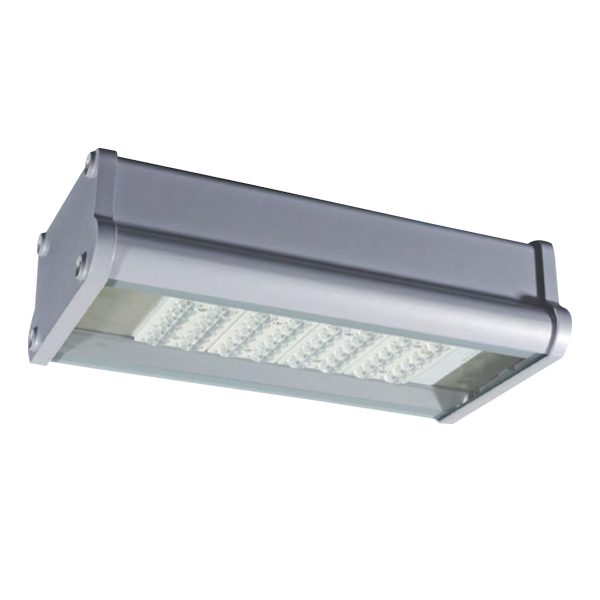

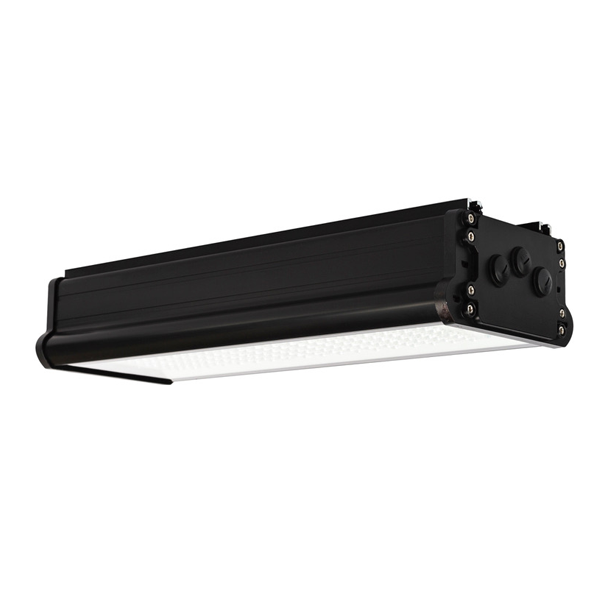

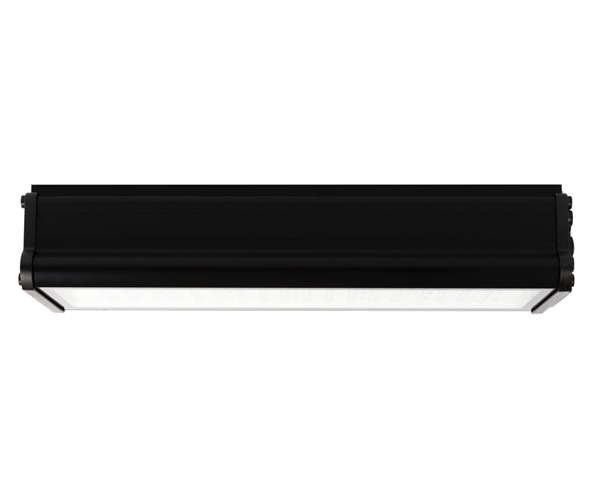

T-LED

The T-LED is a High Performance, Energy Efficient, Tunnel and Underpass Lighting Luminaire.

T-LED Options Available Include:

- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10Kva, 20Kva)
- Class II (DB – Double Insulated)
- Colour: Black (BL Standard), White (WH), Grey (GR)
- CCT: 3000K, 4000K (Standard), 5000k
- Controller: RS485 compatible lamp driver: (SCU02)
- TST compatible: (LCU12R)

Suitable For

- Tunnels
- Underpasses

Specifications

- Body: Extruded and Die cast Aluminum (marine grade)
- Optics: Distribution to Meet Uniformity Requirements
- LED: 48 – 96 – 192 – 240 – 288
- Wattage: 36 – 72 – 140 – 180 – 210 Watts
- Finishing: Powder Coat (Grey Standard)
- Mounting: 4 – 12 Metres
- Fixing: Universal Stirrup
- IP rating: IP66
- IK rating: IK06
- Voltage: 240V 50/60Hz
- Power Factor: >0.9

Features

- Designed to meet stringent Australian Standards
- Suitable for Tunnel and Underpass applications
- Self cleaning housing and PMMA/Glass optical diffuser
- High Performance LED and Optics to meet AS/NZ standards
- Integrated thermal management
- Segregated termination chamber
- Removable Driver and LED module
- Complies with AS/NZ standards
- 10 year warranty

Download Catalogue

1 / 1

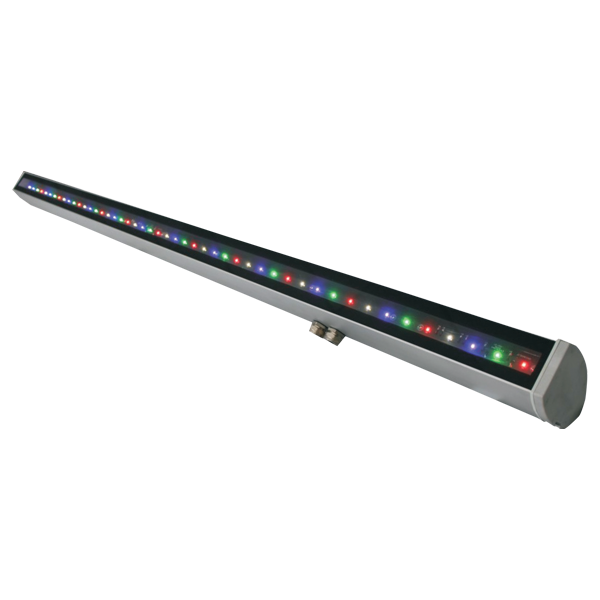

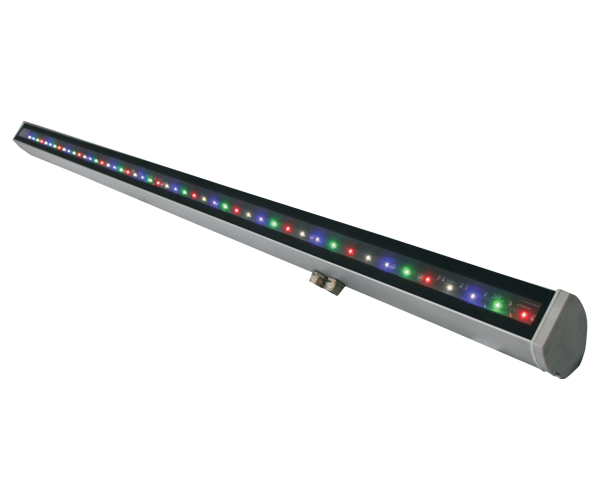

B-LED

B-LED is an RGB Linear Lighting System suitable for bridges and roads.

B-LED Options Available Include:

- Fuse Terminal Block: (FTB)
- Surge Protection Device: )SPD – 10Kva, 20Kva)
- Colour: Green (GR), White (WH), Black (BL – Standard)
- CCT: 3000K, 4000K (Standard), 5000k

Suitable For

- Bridges
- Roads

Specifications

- Body: Extruded aluminium (marine grade)
- Optics: Narrow – Medium – Wide – Oval
- LED: 24 – 36 – 48 – 60
- Wattage: 30 – 42 – 54 – 65 Watts
- Lengths: 600 – 900 – 1200 – 1500mm
- Finishing: Powder Coat (Grey Standard)
- Mounting: Adjustable brackets (standard)
- IP rating: IP65
- IK rating: IK06
- Voltage: 240V 50/60Hz
- Power Factor: >0.9

Features

- Designed to meet stringent Australian Standards
- IP65 Applications
- High Performance LED’s
- Integrated thermal management
- In built driver
- Phillips LED modules
- RGB colour changing
- Plug and play design
- EMC approved
- 5 year warranty

Download Catalogue
