Portable Roadside Technology

ATS Portable Traffic Signal (PTS) utilises the latest in microprocessor and Radio Frequency (RF) technologies to provide a cutting edge product.

The PTS is a dual-trailer system of a Master and Slave trailer, which can be inter-connected together as a single unit for easy transport with a single vehicle. Set up of the system can be performed by one person and takes less than 10 minutes to transform from trailer to operating position.

The solar powered system is capable of running non-stop for more than a week under ideal conditions and is fitted with an in-built 240 Vac charging system, when conditions are unsuitable for maintaining the battery charge.

FEATURES

• Solar powered with deep discharge battery
• Built-in 240 Vac charging system
• Single Lane Shuttle or Two Way crossing operation
• Radio Link Master/Slave operation
• Cable linked remote control
• All operational modes easily controlled from remote control
• Secondary lantern outputs for intersection control
• Designed for RTA Equipment Specification No. PTS/3 for Portable Traffic Signals part A and B
• Compliance with AS4191:1994
• Menu driven, user friendly LCD and keyboard interface
• Built-in fault log and warning on liquid crystal display
• On-site configurable
• IP45 trailer storage compartment
• IP35 Signal Lanterns (IP65 optional)
• U.V. stabilised components
• Modular components

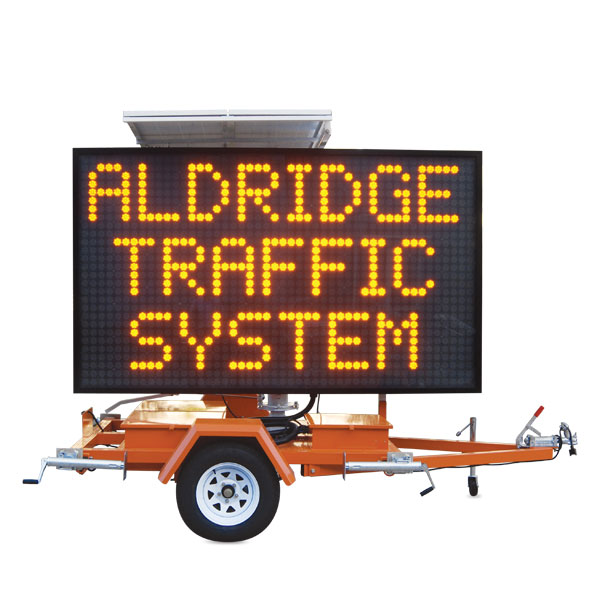

VARIABLE MESSAGE SIGN VMS ‘B’ SIZE

ATS Variable Message Sign B – is a trailer-mounted self-powered VMS board with remote messaging and radar speed display capabilities. The VMS can display multi-message full graphics in various font styles. It utilises high brightness LED technology for superior visibility in all light conditions.

FEATURES

• Fully solar powered with backup battery
• Designed to AS 4852.2-2009
• Rotatable mechanical tilt solar panels
• Full Matrix Display, 1 to 4 lines of text, graphics & animation
• High quality amber LED display
• Non-glare UV polycarbonate screen
• Graphical programming interface for instant message preview
• Hydraulic sign-lifting mechanism
• Lockable storage compartment
• Matt black panel frame with reinforced front
• Rotatable display sign panel
• Automatic display dimming

SPECIFICATIONS

VMS ‘B’

• Display size (mm) 2030 x 1400
• Display viewing area (mm) 1830 x 1200

VARIABLE MESSAGE SIGN VMS ‘C’ Size (Colour)

ATS Variable Message Sign C – is a trailer-mounted self powered VMS board with remote messaging and radar speed display capabilities. The VMS can display multi-message full graphics in various font styles. It utilises high brightness LED technology for superior visibility in all light conditions.

FEATURES

• Fully solar powered with backup battery
• Designed to AS 4852.2-2009
• Rotatable mechanical tilt solar panels
• Full Matrix Display, 1 to 4 lines of text, graphics & animation and auto fit font
• High quality 5 colour LED display (Yellow, Red, Green, White, Blue)
• Non-glare UV polycarbonate screen
• Graphical programming interface for instant message preview
• Hydraulic sign lifting mechanism
• Fully galvanised trailer
• Lockable storage compartment
• Burnt orange panel frame with reinforced front
• Rotatable display sign panel
• Fault reporting
• Automatic display dimming
• Security lockable wheels

SPECIFICATIONS

VMS ‘C’

• Display size (mm) 2700 x 1800
• Display viewing area (mm) 2400 x 1600

FLASHING ARROW SIGN ‘B’ SIZE 770 X 1500

ATS Flashing Arrow Sign – Type B complies with specifications AS/NZS4192: 2006 and RTA FAS/5.

The sign is designed for roof mounting on vehicles. It is fully self-contained to provide advance and directional traffic information whilst minimising power consumption.

ATS Arrow Signs are constructed with aluminium frames and panels and are powder coated to give a lightweight durable piece of equipment.

FEATURES

• Microprocessor controlled
• Low voltage protection with automatic switch to warning mode for overload protection
• Built-in lamp failure detection
• Fail-safe operation of the sign under fault conditions
• Four operational modes: Arrow Right, Double Headed Arrow, Arrow Left, Warning
• LED controller display for operation status
• Automatic dimming facility in conjunction with an in-built light sensor
• Luminous intensity levels and colour as per AS/NZS 4192:2006 specification
• 50,000 hour ultra bright LEDs
• Operates reliably under all weather conditions
• LED Rotator Beacon with white LED’s with amber cover. Multi-function strobe/flash with rotator effect.

FLASHING ARROW SIGN ‘C’ SIZE 1200 X 2400

ATS Flashing Arrow Sign – Type C complies with specifications AS/NZS4192: 2006 and RTA FAS/5.

The sign is designed for purpose built trailers. They are fully self-contained to provide advance warning and directional traffic information whilst minimising power consumption.

ATS Arrow Signs are constructed with aluminium frames and panels and are powder coated to give a lightweight durable piece of equipment.

TRAILER FEATURES

• Latest in solar powered and LED technology
• Continuous operation without solar assistance for 7 days
• LED lanterns are fail-safe, energy efficient and high intensity
• Meets Wind Load requirements of AS1 170.2 for Region A, Terrain Category 2
• Automatic dimming for night time operation
• Lockable enclosure protects the control unit, battery etc. from weather and vandalism
• Removable low coupling and lockable wheels with chains for security
