CENTRAL LIGHT SOURCE - CLS

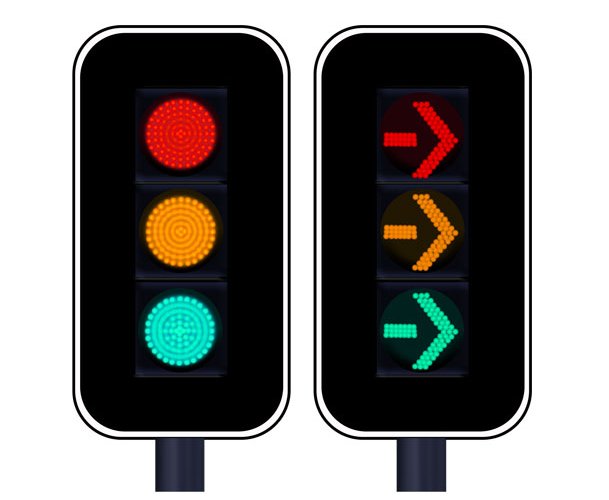

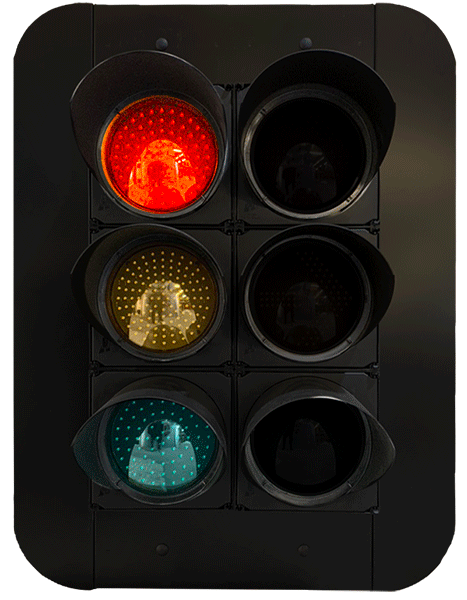

CLS Traffic Signal Lanterns

Traffic Signal Lanterns fitted with Central Light Source (CLS) Signal, utilizing the latest generation high-intensity LED and optical lens design. Designed to meet Australian Standards.

CLS delivers a more uniform light distribution using high-intensity LEDs. The signal is seen as one single light source, with no visible diodes, when compared to traditional LED signals, which are visually seen as single LEDs grouped to form a light source. CLS provides a more comfortable visual to road users.

SPECIFICATIONS

FEATURES

Meets all requirements of AS-2144
Available in 200mm and 300mm sizes
Available in Aluminium, Polycarbonate and Recyclable Go Green Enviro Housing
Available in:
230V AC (LV)
42V AC (ELV) Dim-By-Wire
High luminous output
Low output degradation
Low sun-phantom intensity
Uniform lens illumination
No veiling reflection
Coloured lens corresponding to LED colour to minimize chance of false recognition
Wide range of temperature operation
IP65 protection against dust and moisture
Compatible with existing Traffic Controllers in relation to dimming and monitoring
Long term reliability and operational life
Substantial energy and cost saving
Low maintenance
Easy retrofit optics available
Symbolic signals available

OPTIONS

One, two or three aspects.
Four or more aspects by special order
Arrows
Symbols in a specified combination
Target board
Visors
Mounting straps
Louvres
Cables and special-length interconnecting cables.

ACCESSORIES

Aldridge vehicle lanterns are available with a full range of accessories including:

Target boards with white border
Target boards without border
Various length mounting straps
Various cable harness lengths are available

Aldridge visors come in the following sizes:

200mm or 300mm, open type visors
200mm or 300mm, closed type visors
Left and right cutaway visors
Half and full vertical louvres
Half and full horizontal louvres

Download Data Sheet

1 / 3

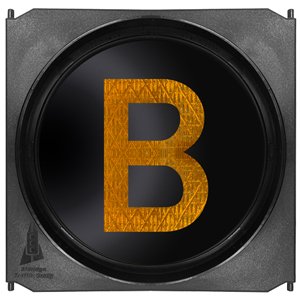

CLS Symbolic Signals Lanterns

Symbolic Signal Lanterns fitted with Central Light Source (CLS) Signal, utilising the latest generation high-intensity LED and optical lens design. Designed to meet Australian Standards.

SPECIFICATIONS

FEATURES

Meets all requirements of AS-2144
Available in 200mm and 300mm sizes
Available in Aluminium, Polycarbonate and Recyclable Go Green Enviro Housing

Available in:

230V AC (LV)
42V AC (ELV) Dim-By-Wire
High luminous output
Low output degradation
Low sun-phantom intensity
Uniform lens illumination
No veiling reflection
Coloured lens corresponding to LED colour to minimize chance of false recognition
Wide range of temperature operation
IP65 protection against dust and moisture
Compatible with existing Traffic Controllers concerning dimming and monitoring
Long-term reliability and operational life
Substantial energy and cost saving
Low maintenance
Easy retrofit optics available
