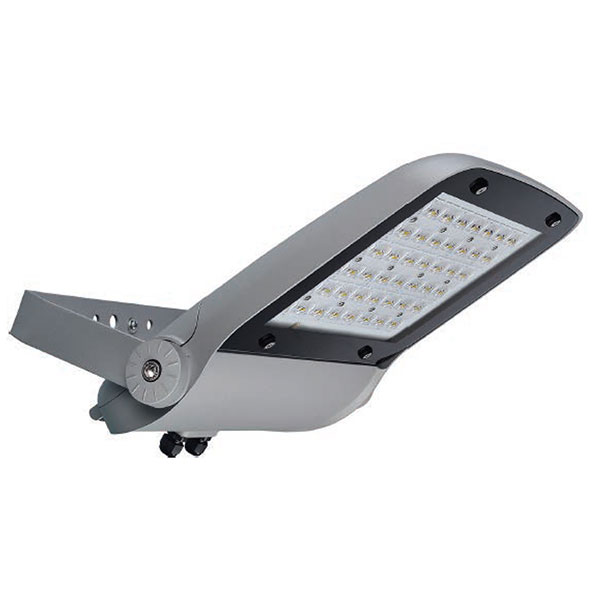

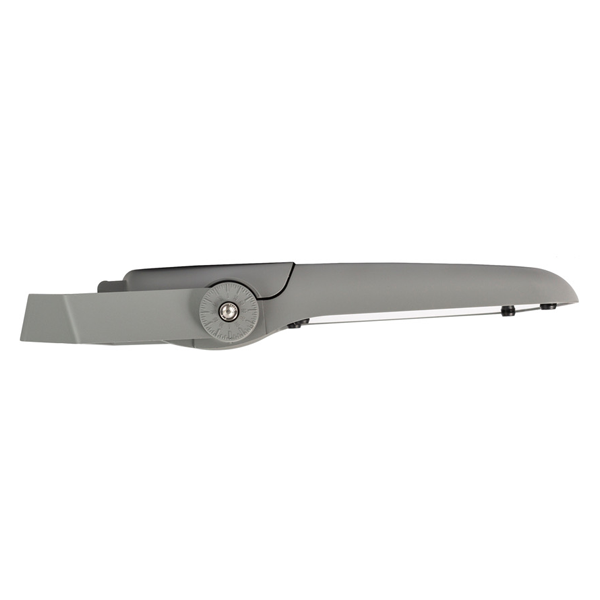

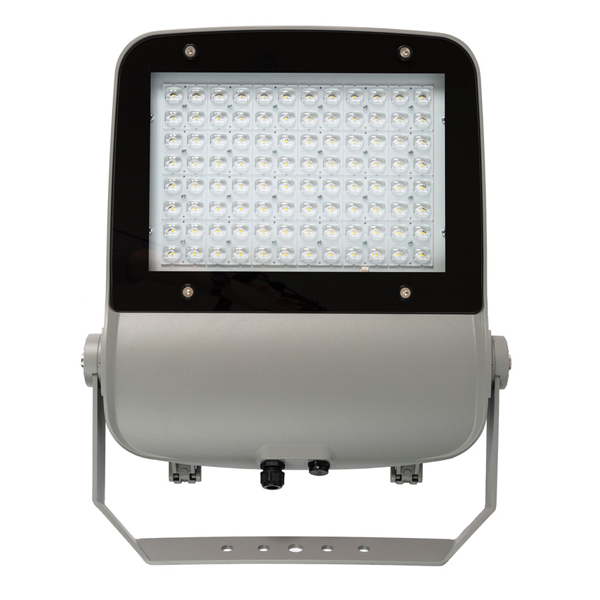

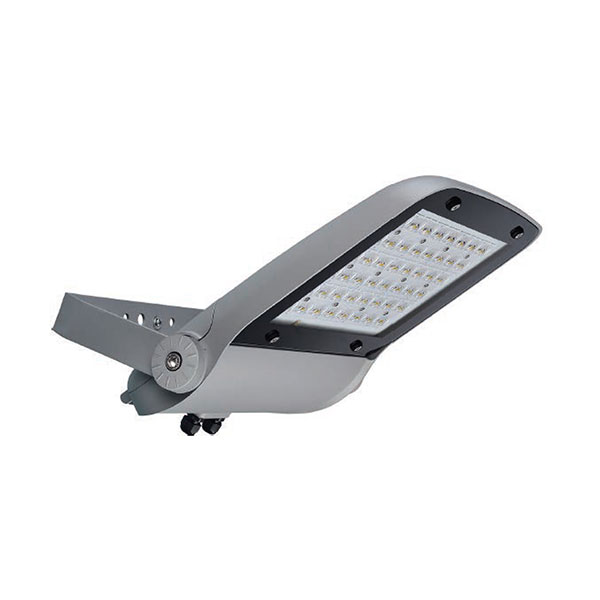

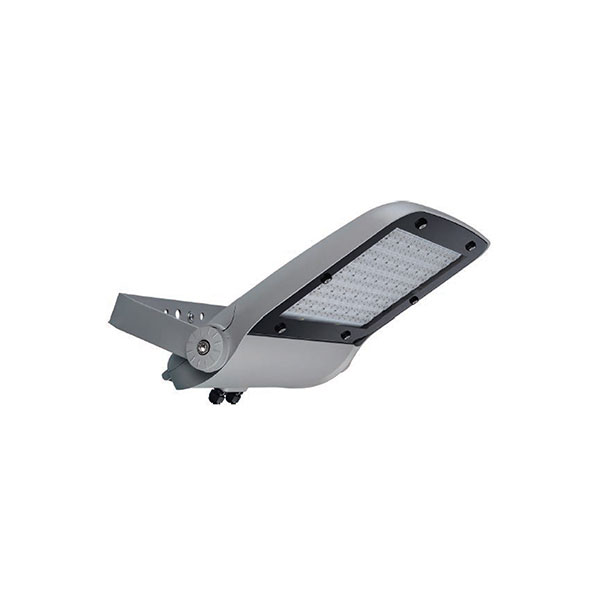

The FLUD is a High Performance, Energy Efficient, Pedestrian Crossing, Tunnel and Underpass Lighting Luminaire. Available in 3 sizes and 11 wattages. The Flud also has an option for RGB: DMX Controller.

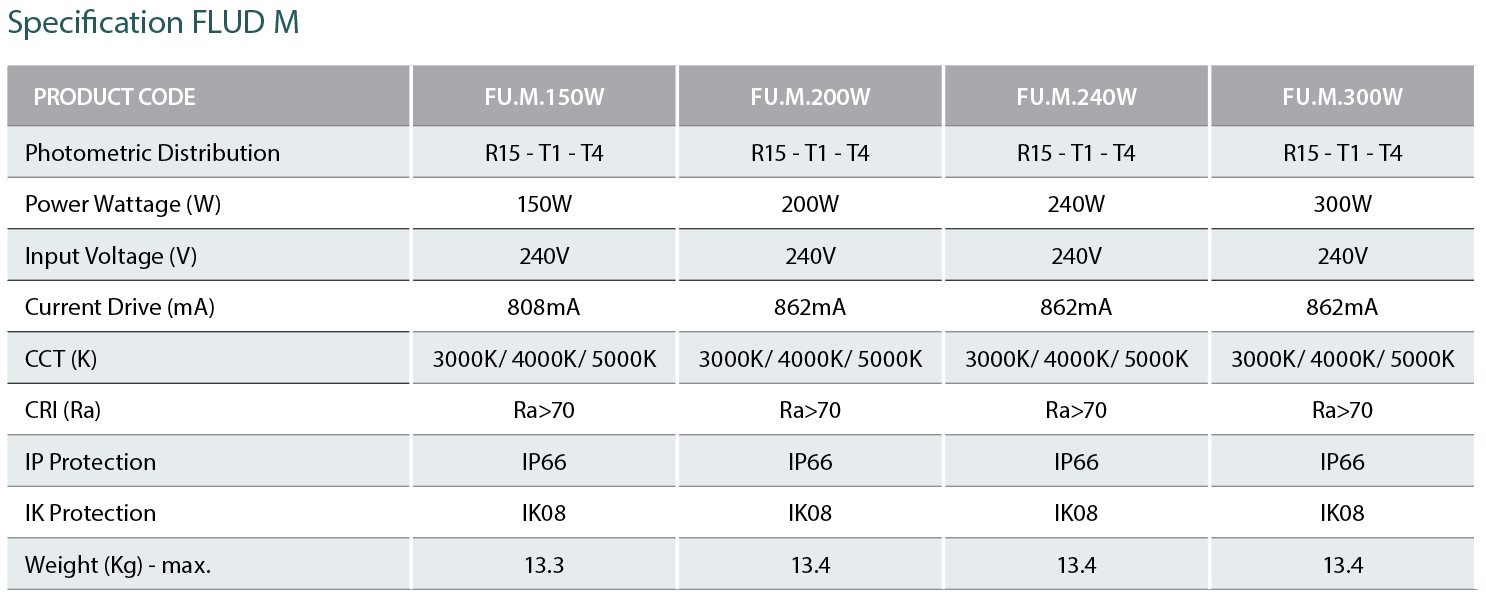

Wattages 80W, 100W, 120W, 120W-rgb, 150W, 200W, 240W, 300W, 360W, 400W, 480W
- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: Asymmetric – Symmetrical Distribution
- LED #: CREE 36 – 36 – 48 – 48 (RGB)
- Wattage: 80 – 100 – 120 & 120 (RGB) Watts
- Finishing: Powder Coat (Grey Standard)
- Fixing: Trunnion Mount
- IP rating: IP66
- IK rating: IK08
- Voltage: 240V 50/60Hz
- Power Factor: >0.9
- Tunnels
- Underpasses
- Pedestrian Crossing
- Freeways
- Expressways
- Highways
- Motorways
- Designed to meet stringent Australian Standards
- Suitable for Roadway, Tunnel and Landscape Applications
- Self-cleaning housing and PMMA optical diffuser
- High Performance LED & Optics to meet AS/NZ1158
- Integrated thermal management
- Segregated termination point
- Hinged ‘quick access latch’
- Complies with AS/NZ 1158.6 & AS/NZ 1158.1
- 10 year warranty
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL, )White (WH), Grey (GR-Standard)
- CCT: 3000K, 4000K (Standard), 5000K
- Visor: Glareshield/spill light kit (GV)
- Controller: RS485 lamp based driver suitable for tunnel lighting

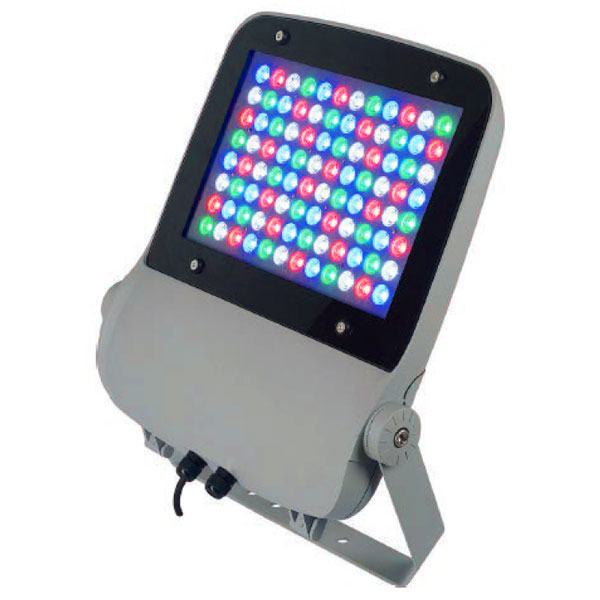

- RGB: DMX Controller
